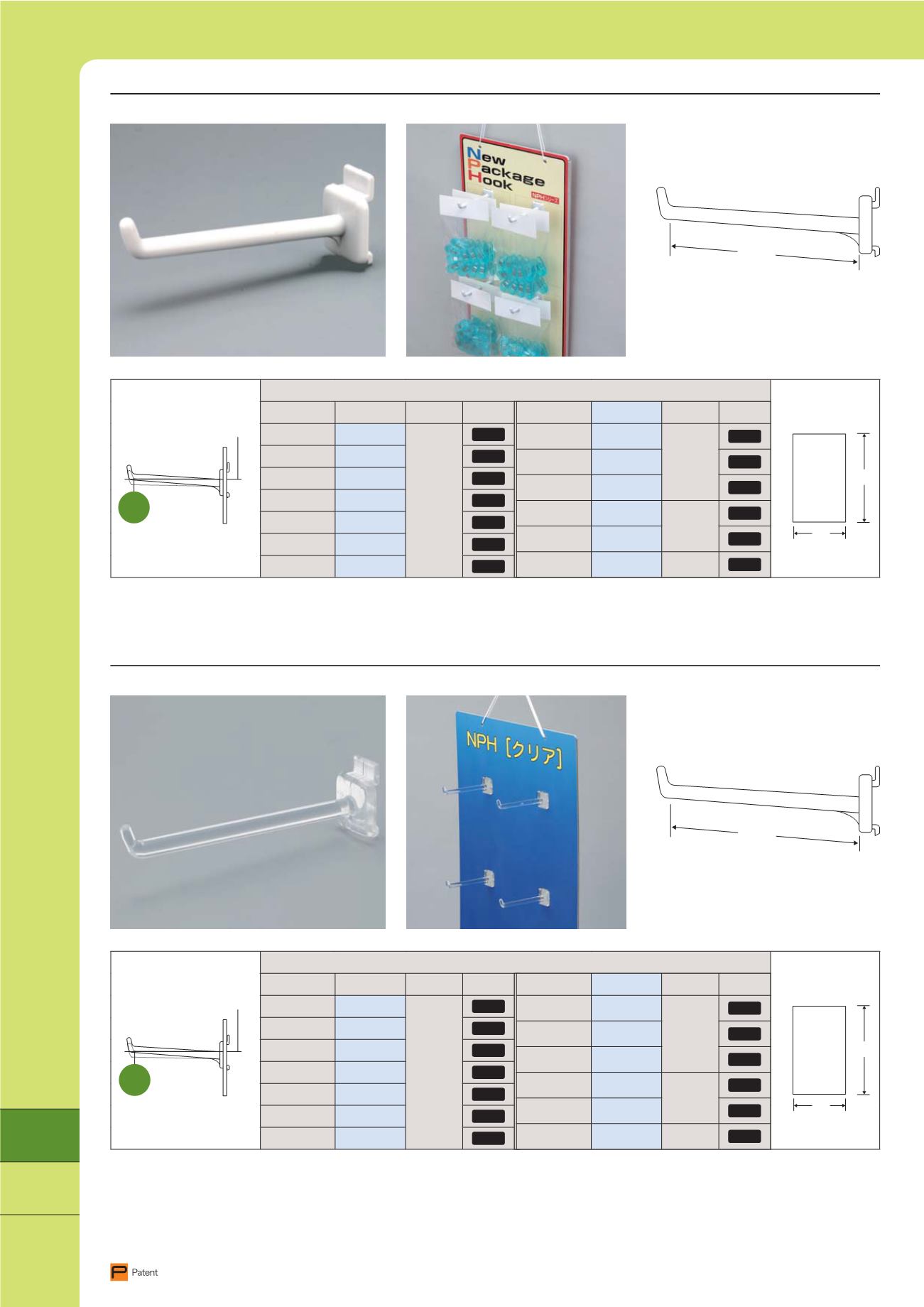

DISPLAY HOOK
(FIXED TYPE)
PACKAGE
HANGER
DISPLAY HOOK (FIXED TYPE)
HOOK & HANGER SERIES
●
Material : ABS
Usage
example
●
Material : PMMA
NPH WHITE
NPH CLEAR
Size
Size
30mm and 70mm are available only for 2mm thick board. 130mm is available only for 3mm thick board.
NPH tip horizontal load limit
For 2mm Load limit Diameter of arm Code no. For 3mm Load limit Diameter of arm Cord no.
30mm 1700g
6φ
10971
40mm 1400g
10972
50mm 700g
10973
60mm 420g
10974
70mm 280g
19224
80mm 210g
10975
100mm 140g
10976
(In-company investigation)
20
12
Horizontal
Board through hole
Load
30mm and 70mm are available only for 2mm thick board. 130mm is available only for 3mm thick board.
(In-company investigation)
00000
00000
00000
00000
00000
00000
00000
00000
00000
00000
00000
00000
NPH tip horizontal load limit
For 2mm Load limit Diameter of arm Code no. For 3mm Load limit Diameter of arm Cord
30mm 1700g
6φ
19211
40mm 1500g
19212
50mm 700g
19213
60mm 560g
19214
70mm 350g
19215
80mm 280g
19216
100mm 210g
19217
20
12
Horizontal
Board through hole
Load
de
40mm 1400g
10977
50mm 700g 6φ
10978
60mm 420g
10979
80mm 210g
6.5φ
10980
100mm 140g
10981
130mm 70g 7φ
10982
Code no.
40mm 1500g
19218
50mm 700g 6φ
19219
60mm 560g
19220
80mm 280g
6.5φ
19221
100mm 210g
19222
130mm 140g 7φ
19223
